GE OEC 9800 Plus C-Arm 12"II 9"II

The GE OEC 9800 Plus C-Arm is a mobile c-arm that was designed with a variety of X-ray applications in mind. Soma of these applications includes pain management, orthopedic, vascular, neurovascular, and cardiac surgeries. The OEC 9800 offers x-ray technology with a touch screen system with low X-ray dosages and a 15kW generator. The 9800 Plus offers 1K x 1K high-resolution images, along with GE's image intelligence technology providing extraordinary crisp and clear images.

• 9”/6”/4.5” Image Intensifier

• Rotating Anode X-Ray Tube

• High-Resolution CCD Camera, 1K x 1K x 12-bit Imaging

• 0.3/0.6 mm Focal Spot 5.3kW/41kW

• Dual High Resolution 16” Monitors

• Touch Screen Controls (right monitor)

• 400 Image Storage

• Patient Annotation

• 16 Image Collage

• 32 Frames Noise Reduction

• Sharpen, Negate, Zoom

GE 9800 Plus Specifications

X-Ray System/Specialty Packages Available

• GSP

• ESP

• ESP 8 FPS

• Vascular

• Vascular 8/15 FPS

• Neurovascular 30 FPS

• Cardiac 30 FPS

• Super C

Generator

• 60 kHz High frequency

• 15 kW full-wave

• Up to 120 kVp

• Up to 75 mA for radiographic film exposures.

• Continuous fluoro boost mode up to 20 mA

• Pulsed fluoro mode

• Pulsed fluorography mode up to 40 mA. (optional)

• Full power from outlet:

• 50 Hz or 60 Hz

• 100V-15A to 240V-10A.

• Patented energy buffer design.

X-Ray Tube

• Rotating anode X-ray tube.

• Focal spots: 0.3 mm and 0.6 mm.

• Anode heat capacity: 300,000 HU.

• Anode cooling rate: 60,000 HU/min.

• Housing heat capacity: 1,600,000 HU.

• Anode diameter: 3.1 in.

• Anode angle: 10°.

• X-ray tube cooling fan. (Vascular, Neurovascular & Cardiac units.)

Collimator

• Iris collimation with dual opposing semi-transparent leaf shutters allows elliptical, round, and rectangular collimation.

• Minimum beam size < 5 X 5 cm2.

• Iris and shutters are continuously variable.

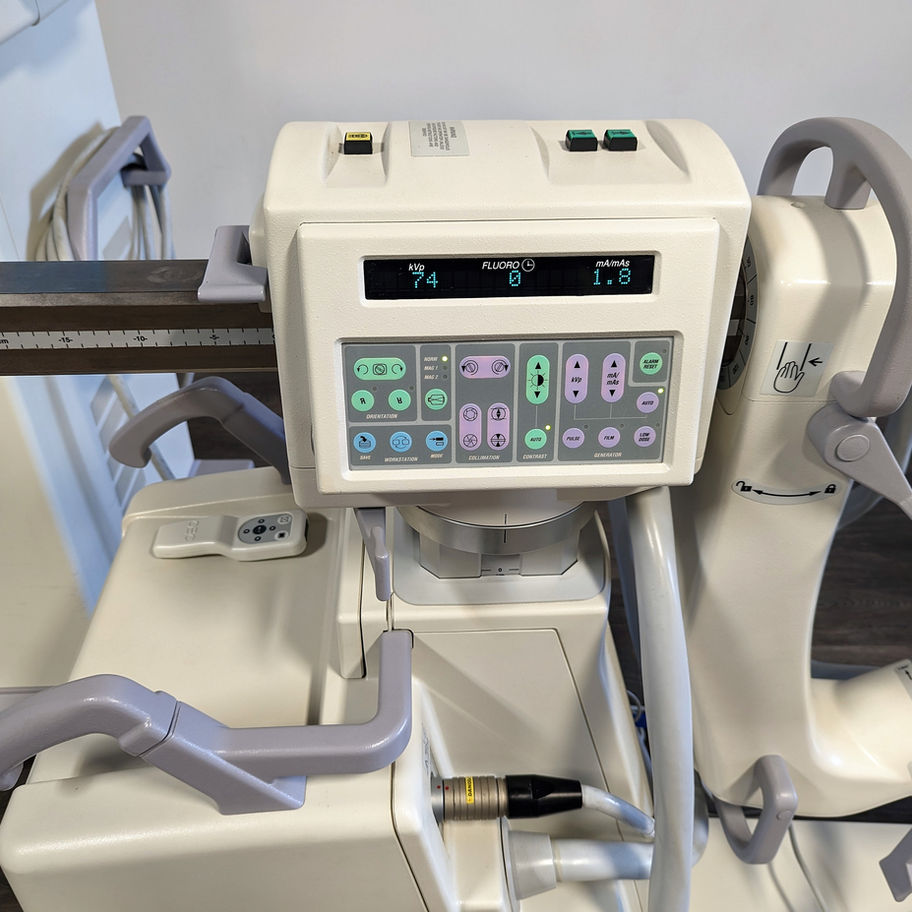

• All functions are remotely controlled from the C-Arm control panel.

Fluoroscopy Mode

• Focal spot: 0.3 mm

• kVp range: 40 – 120 kVp

• mA range: 0.2 – 10 mA normal mode

• mA range: 0.2 – 20 mA continuous fluoro boost mode.

• Auto and manual modes.

• Continuous, one-shot, or pulsed operation.

• ABS varies mA, kVp, and camera gain.

• User specific ABS tables

Pulsed Fluoroscopy Mode

• Focal spot: 0.3 mm.

• kVp range: 40 – 120 kVp.

• mA range: 0.2 – 10 mA

• Pulse rate: 1, 2, 4, or 8 pulses per second.

• Pulse width: 30 or 50 milliseconds.

• Computer-controlled ABS, mA, kVp, and camera gain.

Pulsed Fluorography Mode (optional)

• Focal spot: 0.3 mm.

• kVp range: 40 – 120 kVp.

• mA range: Up to 40 mA

• Pulse rate: 1, 2, 4, or 8 pulses per second.

• Pulse width: 30 or 50 milliseconds.

• Computer-controlled camera iris, mA, kVp, & camera gain.

Digital Spot Mode

• Focal spot: 0.3 mm.

• kVp range: 40 – 120 kVp.

• mA range: 1.0 – 75 mA.

• Automatically terminates exposure and stores enhanced image to storage archival disk.

Radiographic Mode

• Focal spot: 0.3 mm or 0.6 mm.

• Focal spot automatically selected.

• kVp range: 50 – 120 kVp.

• 0.3 mm - mAs range: 1 – 100 mAs.

• 0.6 mm - mAs range: 110 – 300 mAs.

Video Imaging System
12 in Image Intensifier.
Tri-mode 12 in/9 in/6 in image intensifier:
12 in. 1.7 lp/mm.
9 in. 2.3 lp/mm.
6 in. 3.0 lp/mm.
DQE: 65%. (typical)

Video Camera

• High resolution CCD camera.

• 1,004 x 1,004 pixels.

• Full frame capture.

• 360° motorized rotation.

• On-screen orientation indicator. (real-time feedback without fluoro.)

• Left-right image reversal

• Top-bottom image reversal.

• Negative mode.

• Computer-controlled features:

  • Gain

  • Blanking

  • Camera iris

Video Monitors

• Dual 16 in, black etched, anti-glare, anti-static.

• Touch Screen Display.

• Ambient room light sensor.

• Multi-LED X-ray "ON" indicator.

• Remote window/level controls.

C-Arm Dimensions

• Height: 69 / 87 in (1734 / 2191 mm)

• Width: 33 in (838 mm)

• Length: 79 in (1994 mm)

• Weight: 720 lb

Workstation Dimensions

• Height: 64 in (1632 mm)

• Width: 27 in (692 mm)

• Depth: 27 in (692 mm)

• Weight: 430 lb
